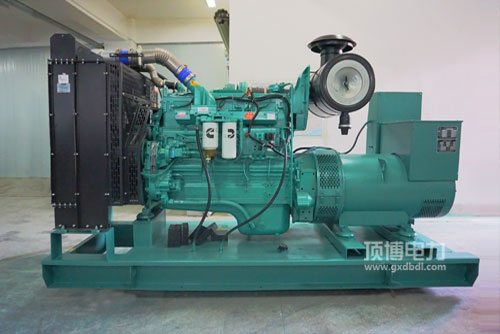

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用起驱力燃料经济条件性好: 最新的燃料掌握系統，别具一格 的STC、ESTC 分等级掌握系統，异常设计方案的火塞边侧燃燒室，高压低压引射燃料，有效做雾化，燃燒有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用热车机瞬态特性出众: 无暇的热车机总布局制作，密切配合康明斯显著的EFC操作系统，操纵控制精性好，积极响应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用热车机升马力高: 整体性设计的紧凑型.外表布局适宜，开机运行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50具备中国有非方向三阶段中及美洲Tier2. Tier 3的排放政策法规符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理都有机会得到性好， 打着机程序运行及运维维护便于，总利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率规模 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的作用：质量分数小， 进行压缩比低， 防雨百叶自然空气加熱，利于开启，挪动车载电子电的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发心理参数	使用电功率(kW)Prime Power	预留效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
